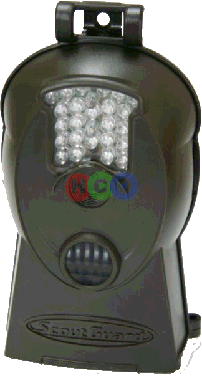

| ScoutGuard SG570 |
| ScoutGuard550.com copyright 2010 owned and operated by The Average Outdoorsman Productions, LLC |
One of the latest cams from ScoutGuard. Just when you thought the
SG550 was the smallest trail cam on the market, Scoutguard did it
again with an even smaller one. Measuring only 3 1/4 x 5 3/4 x 1 1/2
inches!
•Image Sensor: 5MP(SG570V) Color CMOS sensor
•Maximum Resolution: 2560x1920(SG570V)
•Lens: F=3.1mm
•FOV (Field of View): 40 degrees
•Auto IR-Cut-Remove: (Night)
•IR-Flash: 50Ft
•Remote Control Display: 1.7" LCD
•Internal Memory: N/A
•External Memory: SD-card from 8MB to 2GB
•Picture Resolution: 5MP = 2560x1920
•Video Resolution: 640x480(Default, 16FPS)
•320x240(20FPS)
•PIR Lens: Multi Zone
•PIR sensitivity: Adjustable(High/Normal/Low)
•IR Bulbs: 24 Long Range IR Emitters
•Operation: Day/Night(24hours)
•Trigger Time: 1.2s
•Delay: 1s - 60m Programmable
•Capture Mode: 1~3 Programmable
•Video Length: 1-60s Programmable
•Power Supply: 4xAA, 6V DC
•Stand-by Current: < 0.3mA(<7mAh/Day)
•Power Consumption: 150mA
•Low Battery Alert: LED Indicator
•User Interface: Remote Control With LCD Display
•Ports & Jacks: Remote Control, USB Jack, TV Out Jack, SD Card
Slot, 6V DC Jack
•Mounting: Strap, Cable Lock Up To 3/8 Inches
•Dimensions: Heights: 5-3/4 inches, Width: 3-1/4 inches, Depth: 1-1/2
inches
•Weight: Approximate less than 1 lb with Batteries
•Operation Temperature: -4F to 140F
•Storage Temperature -22F to 158F
•Operation Humidity: 5% - 90%
•Security authentication: FCC CE RoHS
Applications:
Hunters - Trails, Food Plots, Feeders, Property Surveillance and
Observation
Home, Office and Community - Indoor and Outdoor Surveillance
Law Enforcement and Environmental Agencies - Illegal Dumping,
Vandalism and Theft
University Research and Studies - Wildlife Observation and Research
